Custom Tabor in Agassiz

The WINTON PROLINE Comfort-Wall

Design render of the Selkirk for WINTON PROLINE Comfort-Wall

"We have to say that it was an absolute pleasure working with you and we definitely appreciate the great customer service you provided throughout the project." - Stephen and Debbie Hanus, Nordegg, AB

Winton is your partner in building to a higher standard. As part of the professional team that evaluates for condensation in thick walls and selecting appropriate windows and doors, Winton can help you navigate each milestone.

It’s important to think of buildings and homes like a system, each piece of the puzzle contributes to the picture of the entire building. Even the form factor, or shape and footprint of the building can contribute to improved performance and energy conservation.

Energy Efficient Benefits in One Wall

The WINTON PROLINE Comfort-Wall is a simple solution to optimize the comfort and energy efficiency of your home.

This straightforward, 2x8 staggered stud assembly can be built quickly using traditional prefab building techniques and with the help of an Energy Advisor and your contractor, you can easily meet the code requirements in your area.

The WINTON PROLINE Comfort-Wall gives you ultimate flexibility with options for 16" or 24" on centre stud spacing.

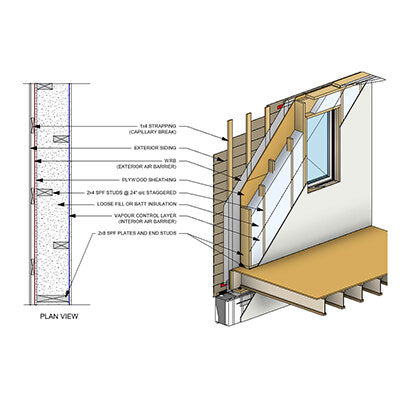

The WINTON PROLINE Comfort-Wall cross-section and diagram

Why Choose the WINTON PROLINE Comfort-Wall

Staggered Stud Design for Acoustic Buffering

With traditionally studded walls, both sides of the wall connect to each other via the studs between them. This connection allows sound to travel through the wall to the other side. The WINTON PROLINE Comfort-Wall takes advantage of staggered stud framing which keeps the two sides of the wall from touching, reducing sound travel.

Energy Efficiency with a Thick Wall Assembly

The 2x8 staggered stud configuration allows for enhanced thermal insulation and can provide a complete thermal break. Combining the efforts of thermal efficiency and achieving airtightness you will enjoy a comofortable home for years to come.

Precision Manufacturing

All of Winton's products are manufacted with exacting quality standards and premium lumber products in our environmentally controlled shops. This produces a quality product that stands the test of time.

Panelized Construction

The WINTON PROLINE Comfort-Wall is designed with ease of onsite assembly in mind when persuing energy efficient homebuilding options and can reach a weather-tight lock-up in days or a few short weeks (depending on the size of your home). Your project generates less waste, your investment is protected from the weather and contractors spend less time onsite which reduces labour costs.

Built with Wood

Wood is a natural, renewable, and sustainable material for building, with a lighter carbon footprint than steel or concrete. As a Sinclar Group Forest Products company, Winton is part of a responsible forestry management network where reforestation, harvesting, milling and environmental stewardship is at the centre of the products we use.

Other Energy Efficient Options We Provide

  • Energy Heel Trusses - Higher heel that allows for more insulation in the roof.
  • Triple Glazed Windows - Three panes of glass cut down on heat glare in the summer and drafts in the winter.
  • Strategic Design - The home and window positions are designed to maximize areas of sun and shade.
